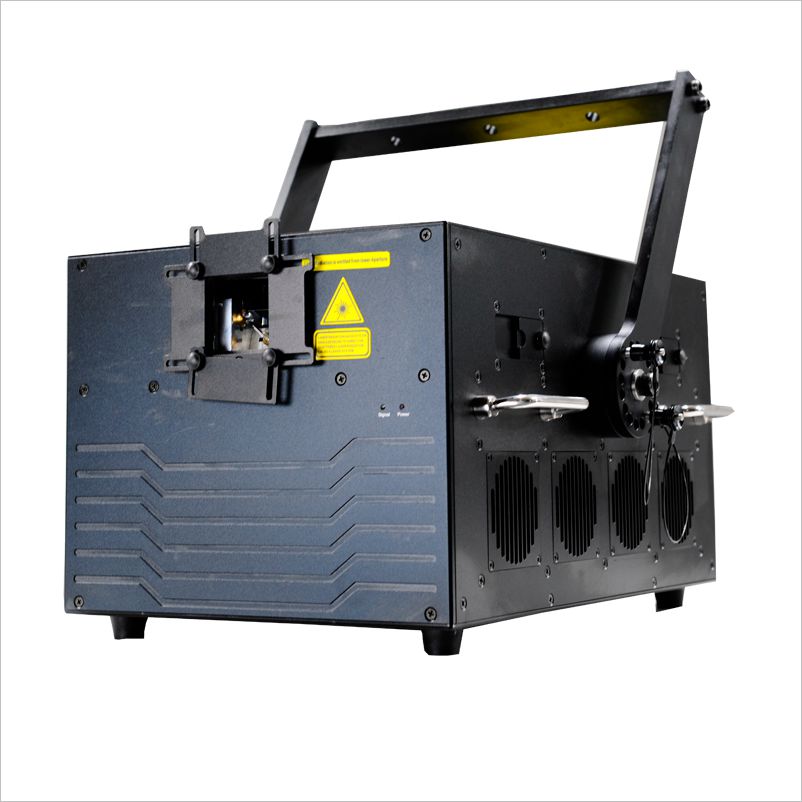

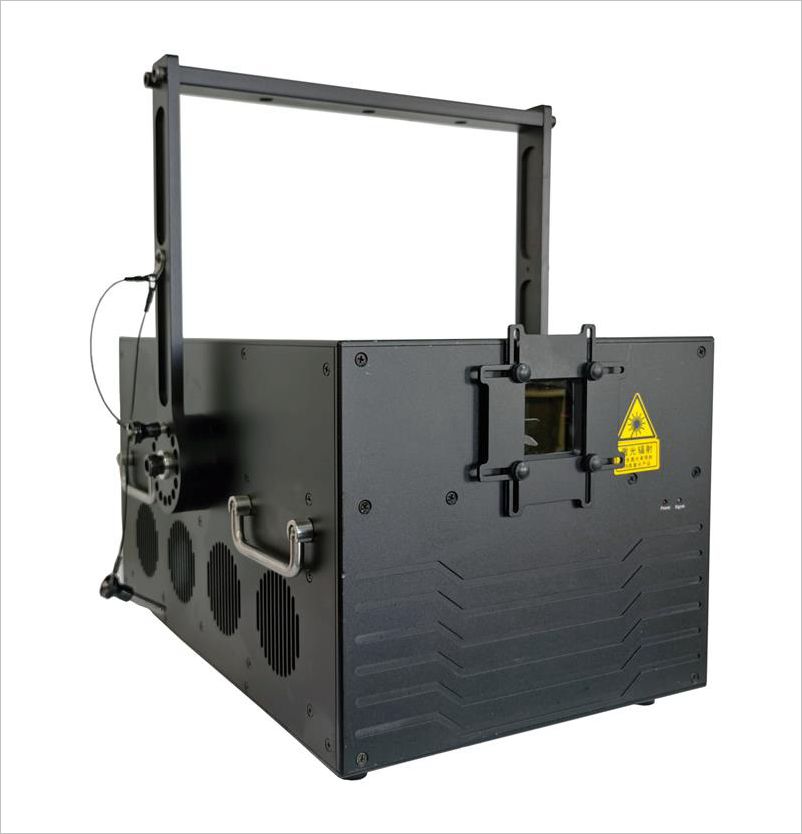

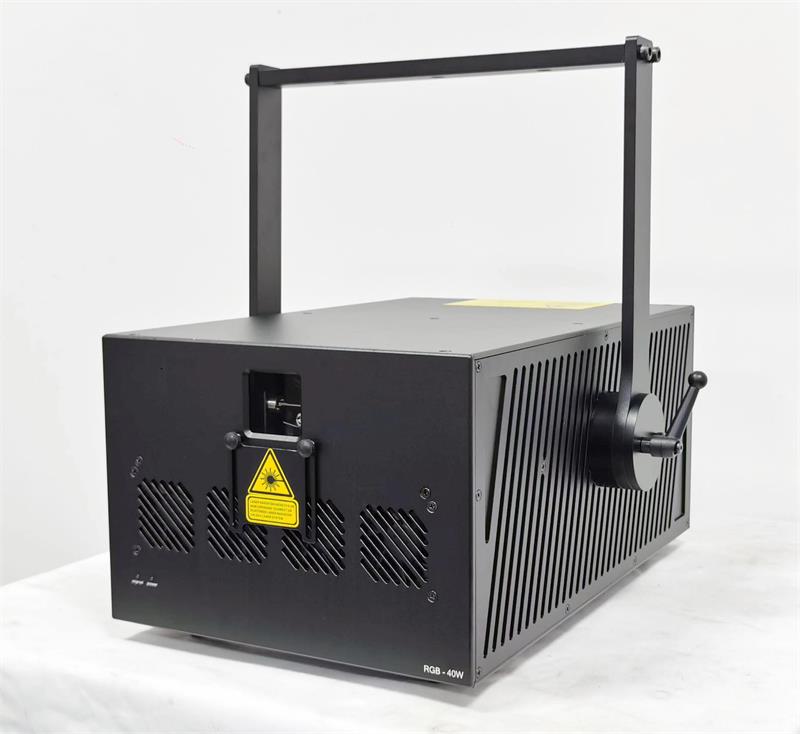

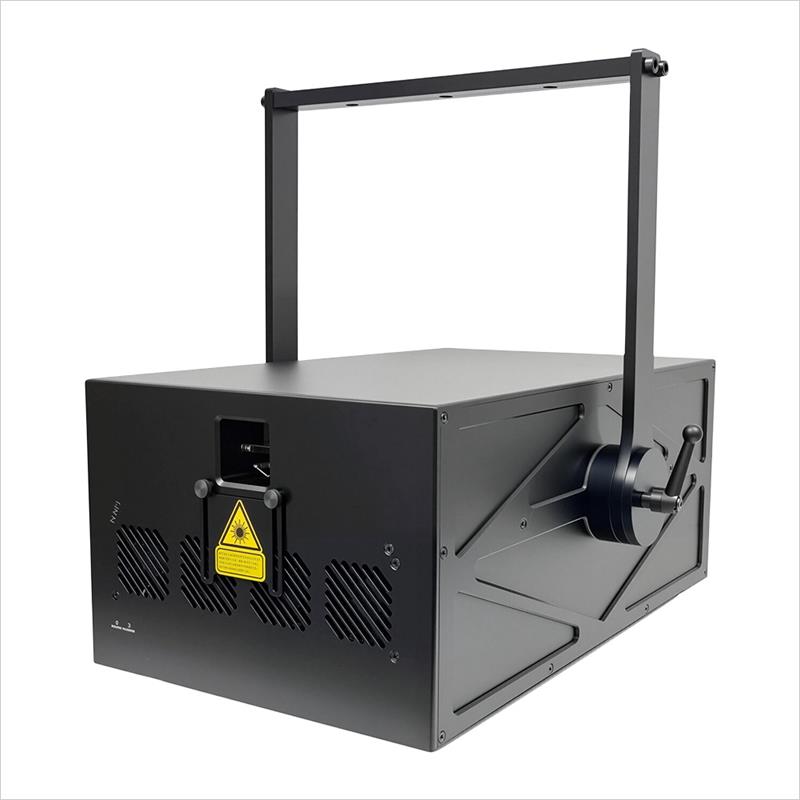

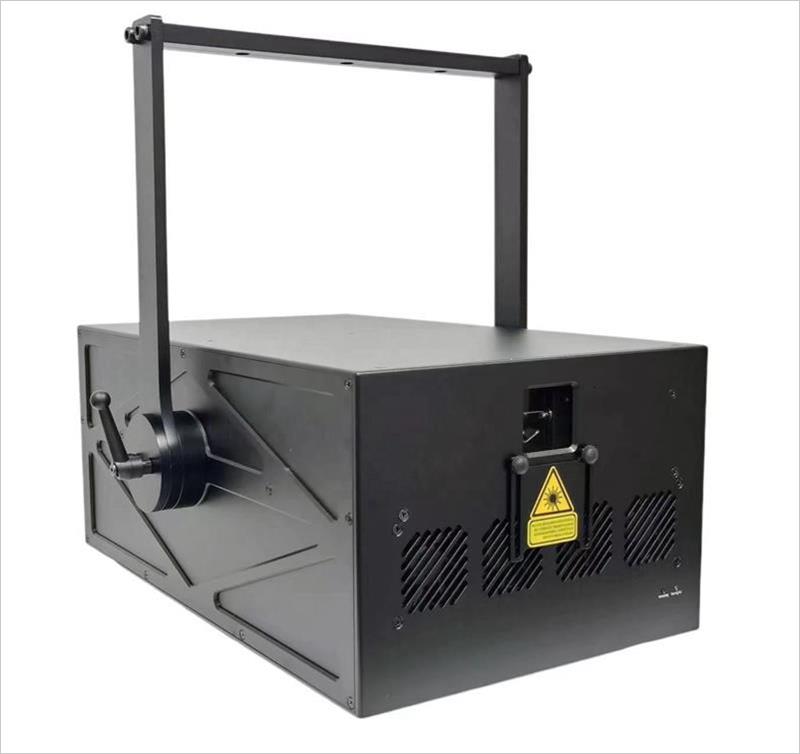

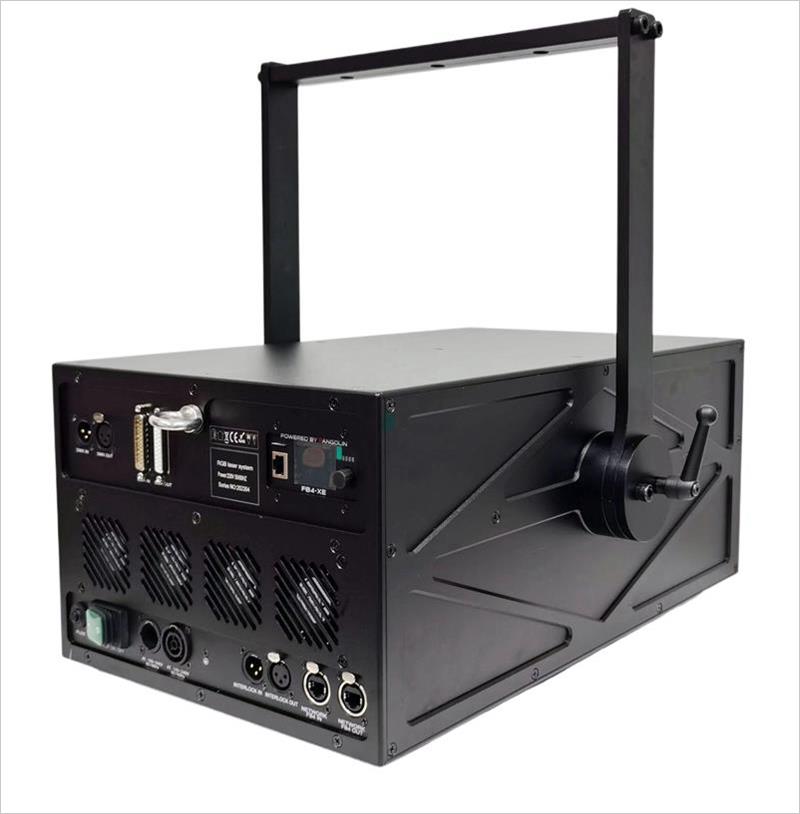

Revolution RGB 50W Animation Full Color Stage Laser Show System

Light source :

Diode with FAC (total 57W)
R: 19W/638nm
G: 19W/525nm
B: 19W/445nm

Diode brand :

R: Mitsubishi / G & B: Nichia

Laser output :

50W

Beam size :

12.3 x 8.2 mm at aperture

Divergence :

<1.0 mrad (full angle)

Modulation :

Analog (Digital optional)

Laser class :

4

Scanner :

GS-50BB, 32kpps @ 8°, 50° max

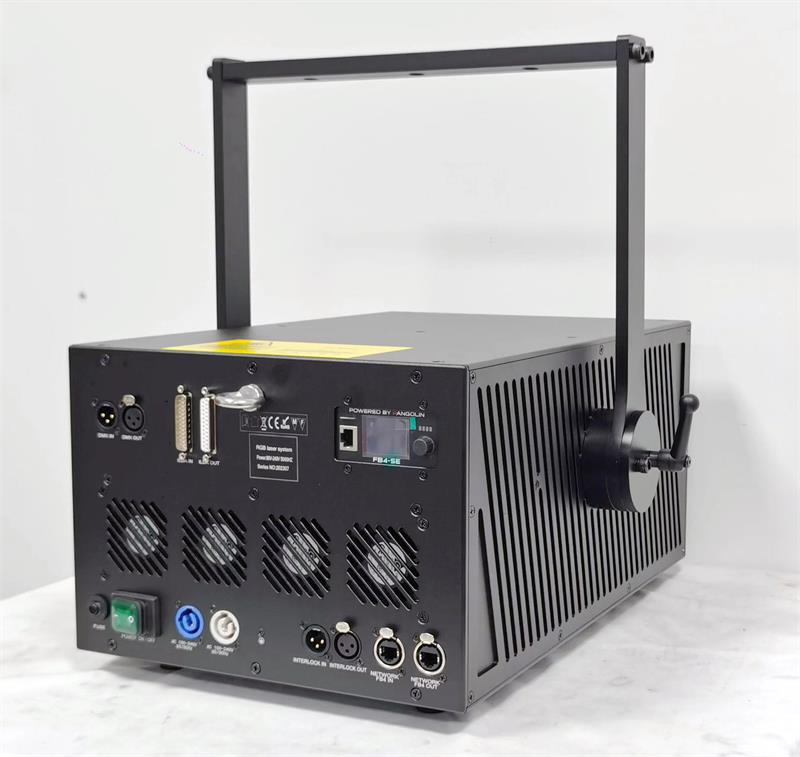

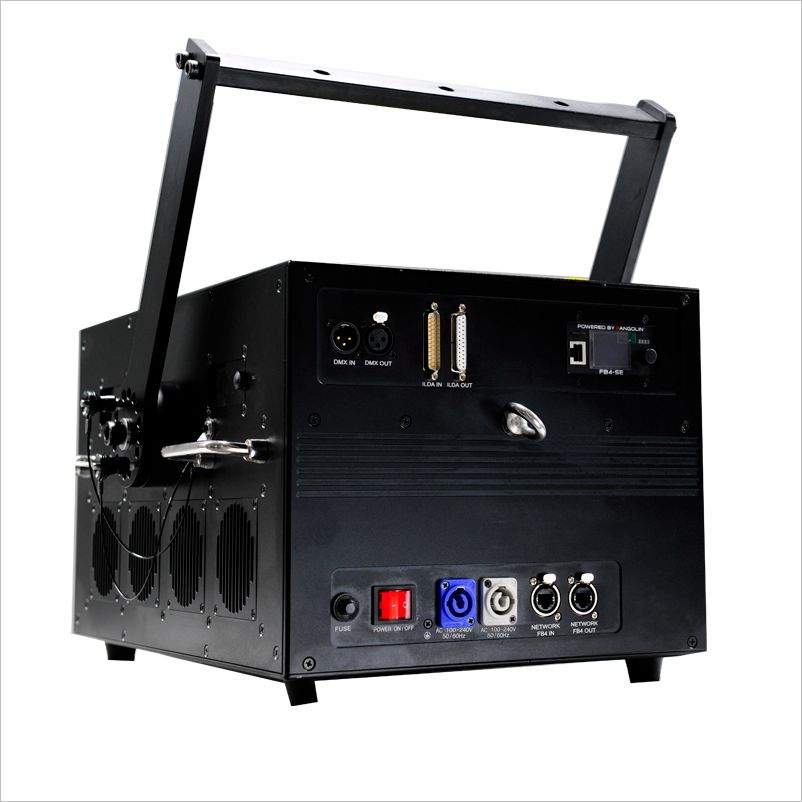

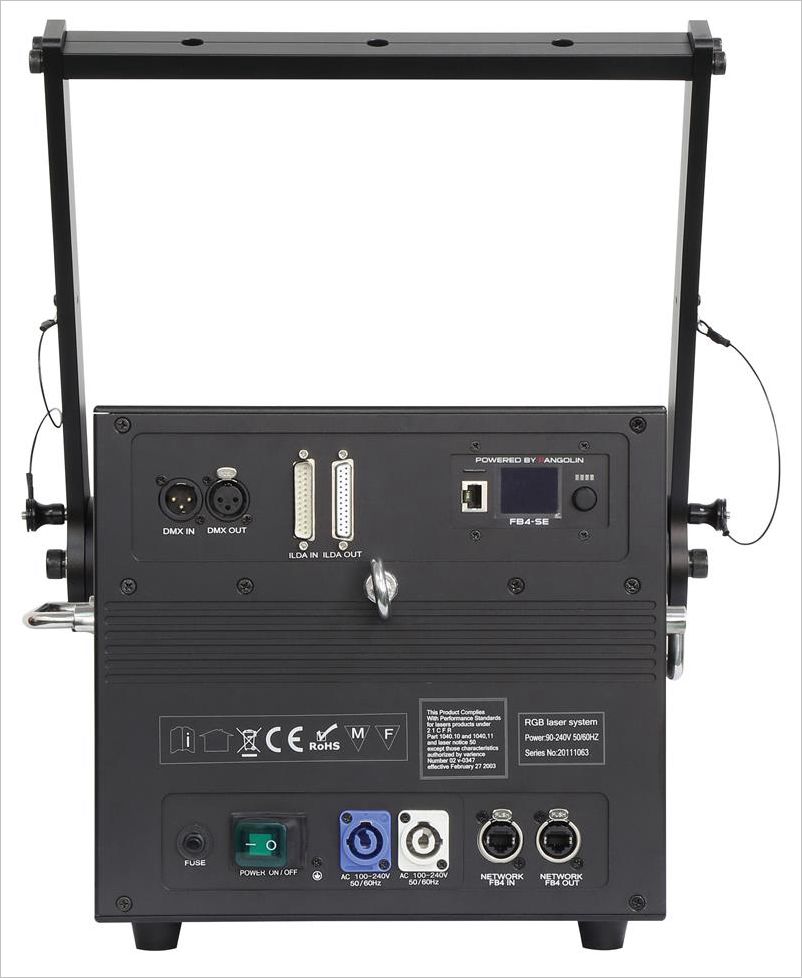

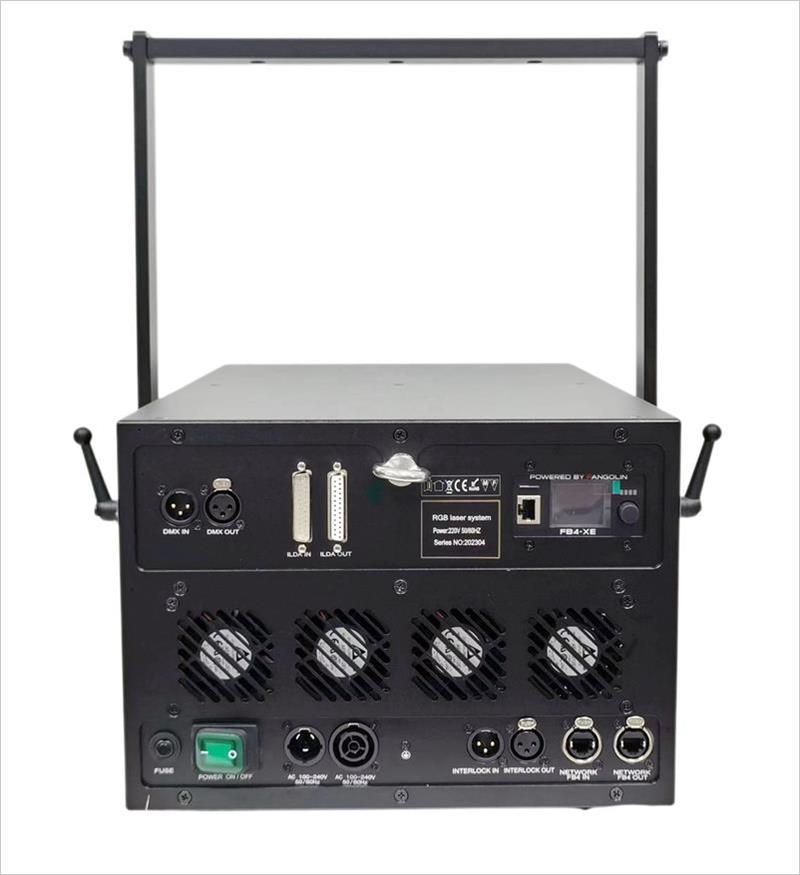

Control :

FB4, Network in/out, ILDA in/out, DMX in/out, Interlock in/out

Power supply:

AC90-250V, 50/60Hz

Power Cons. :

800W

Cooling :

TEC + Heatsink + Fans

IP grade :

IP54 dust-free

Working Tmp:

-20°C ~ 45°C

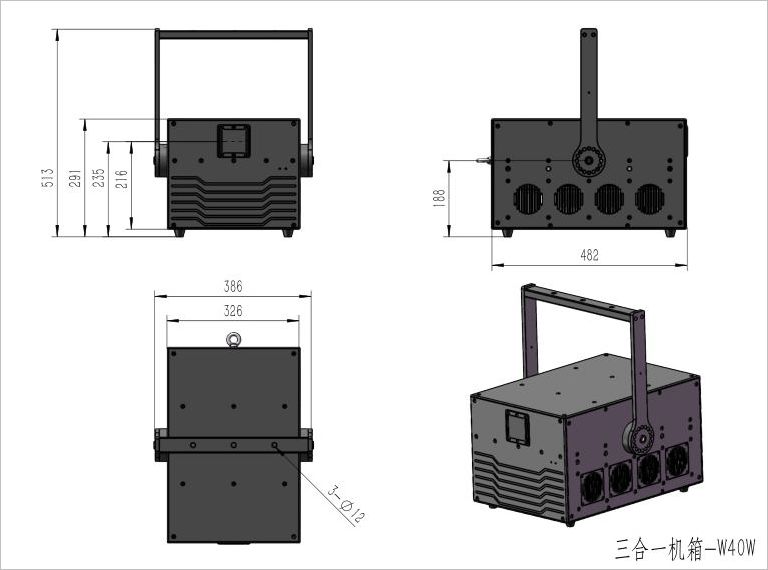

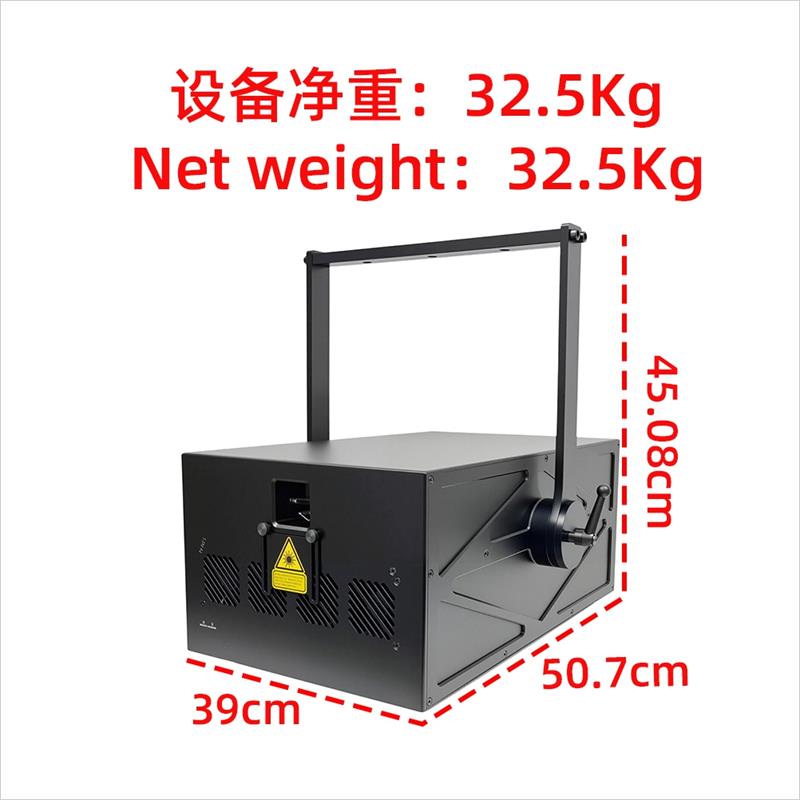

Dimension :

390 x 507 x 267mm
(hanging bracket not included)

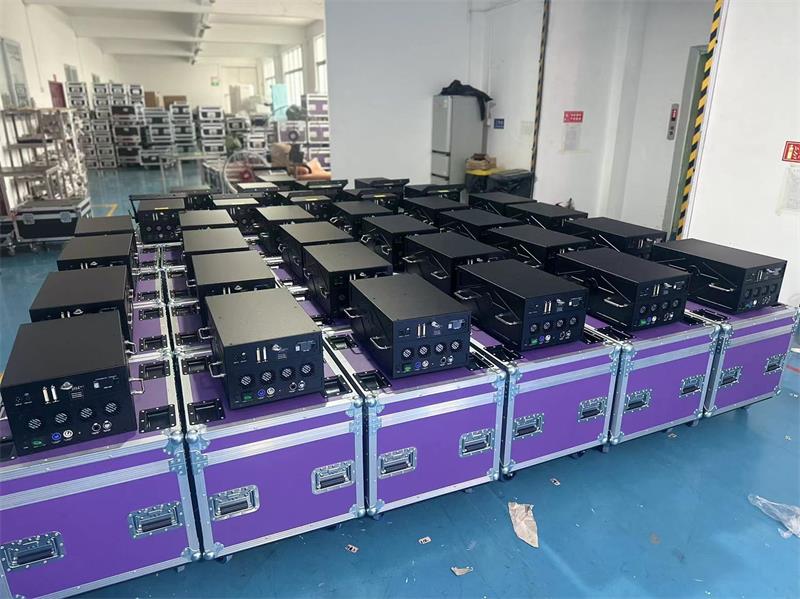

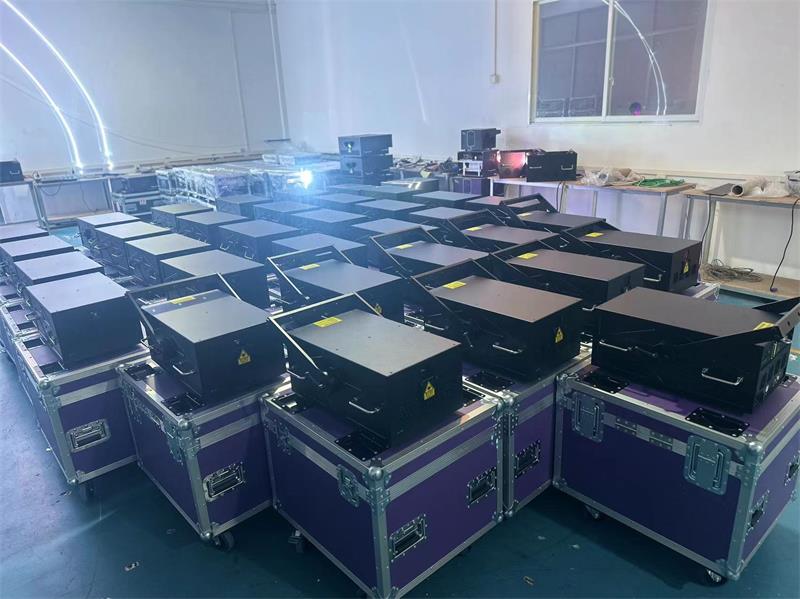

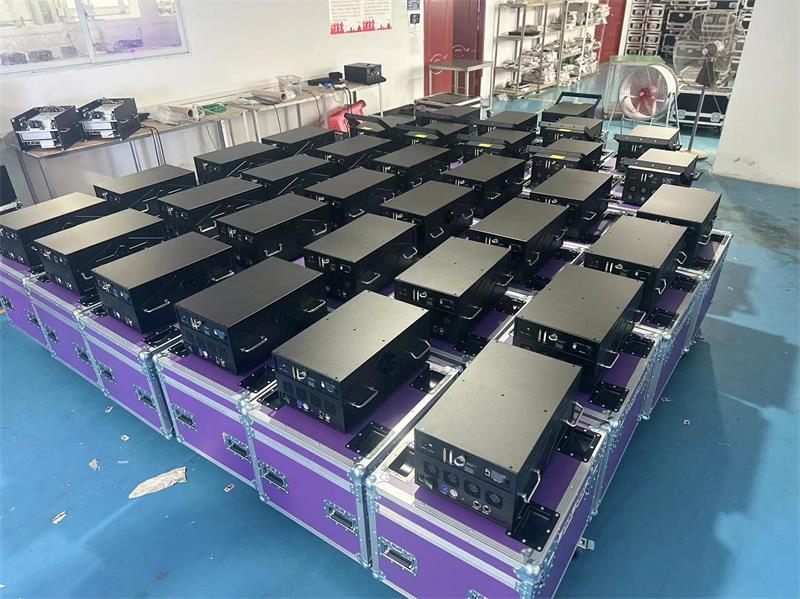

Packing :

Flight case

Net weight :

33kg

Gross weight :

60kg/flight case, 48kg/pelicase

.................................................................................



To download

User Manual & DMX512 Library: SERVICE
