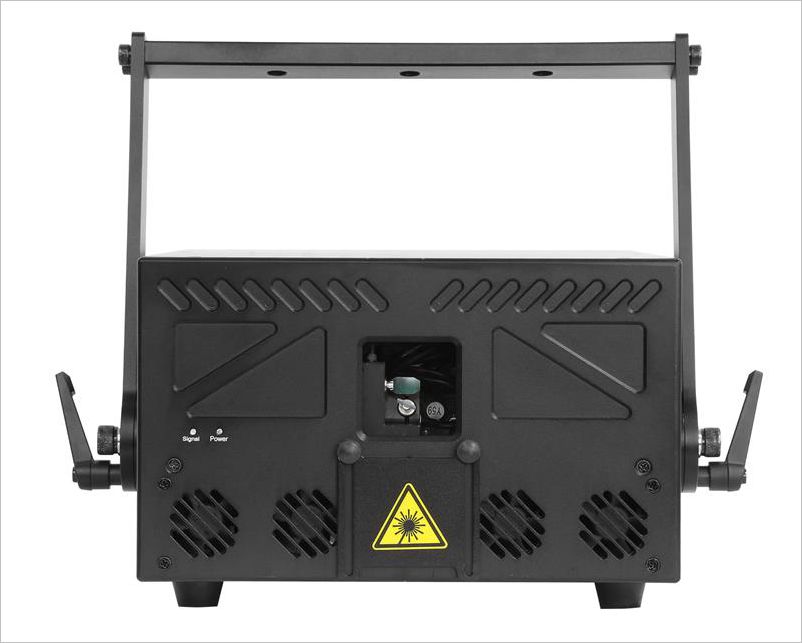

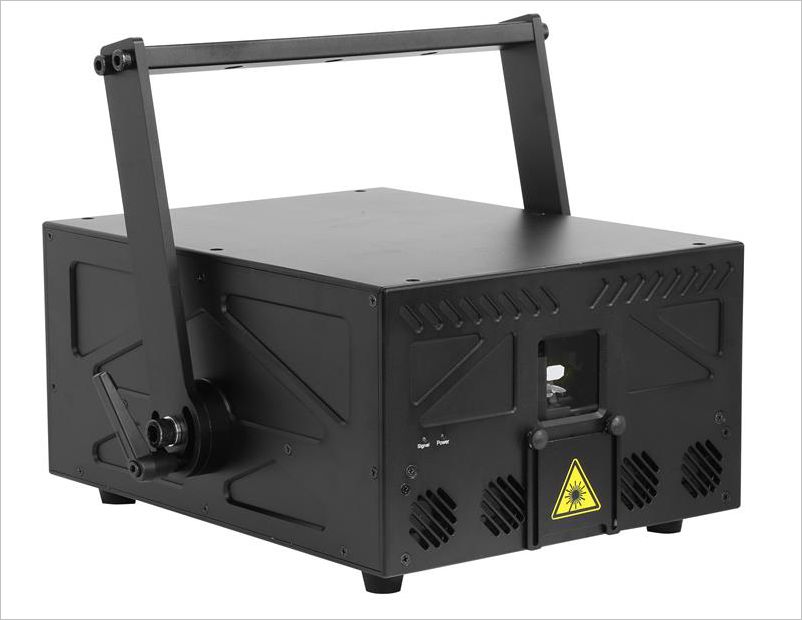

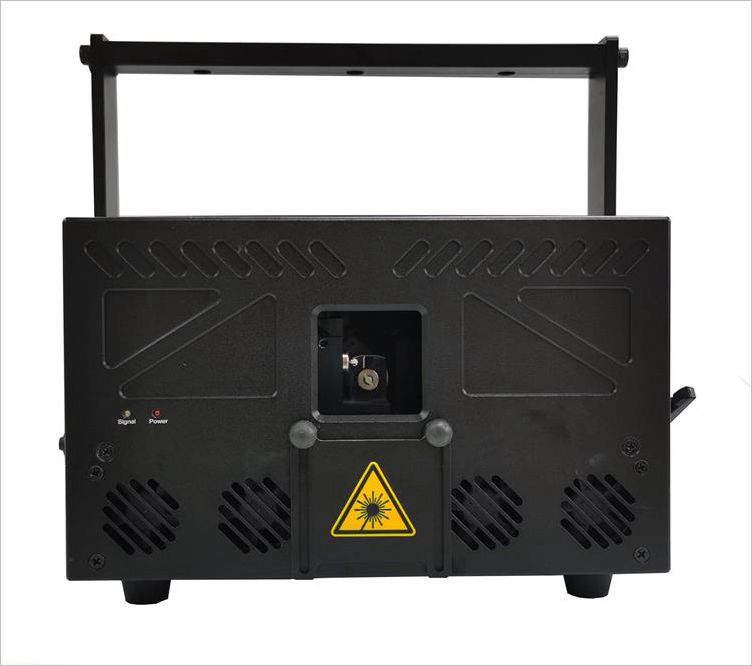

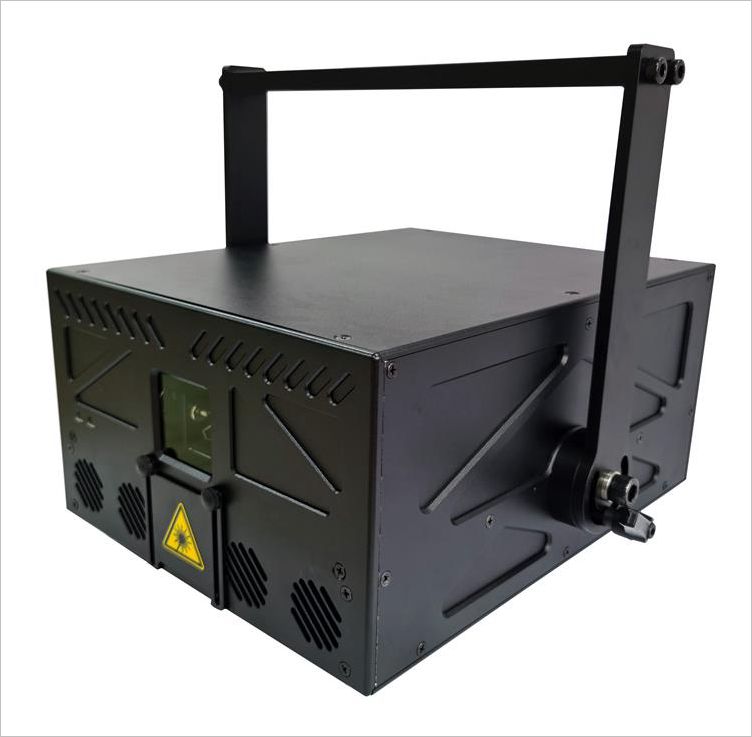

Pro RGB 20W Animation Full Color Stage Laser Show System

Light source :

Pure diode (total 20W)
R: 6W/638nm
G: 6W/525nm
B: 8W/445nm

Diode brand :

R: Mitsubishi / G & B: Nichia

Laser output :

20W

Beam size :

7 x 6 mm at aperture

Divergence :

<1.2 mrad (full angle)

Modulation :

Analog

Laser class :

4

Scanner :

GS-50, 40kpps @ 8°, 60° max

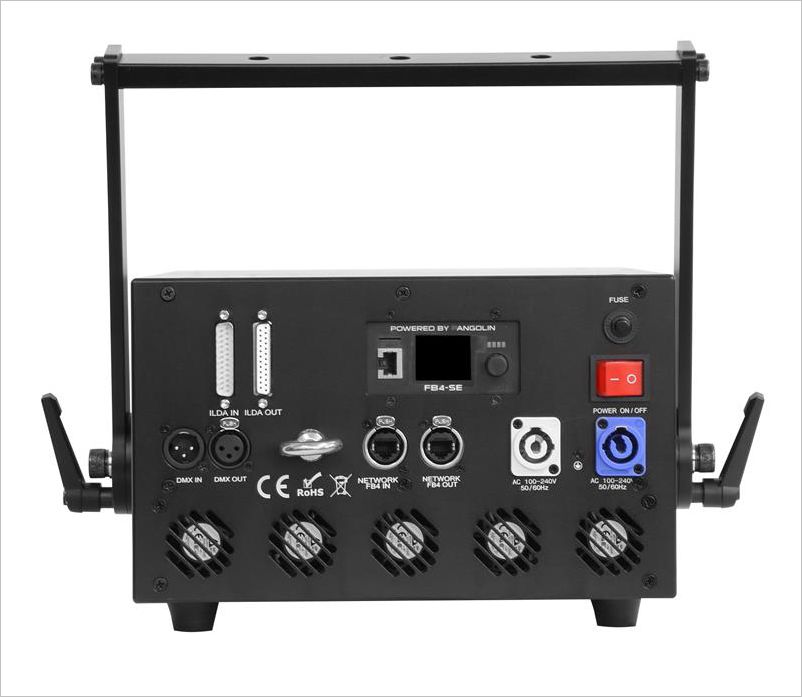

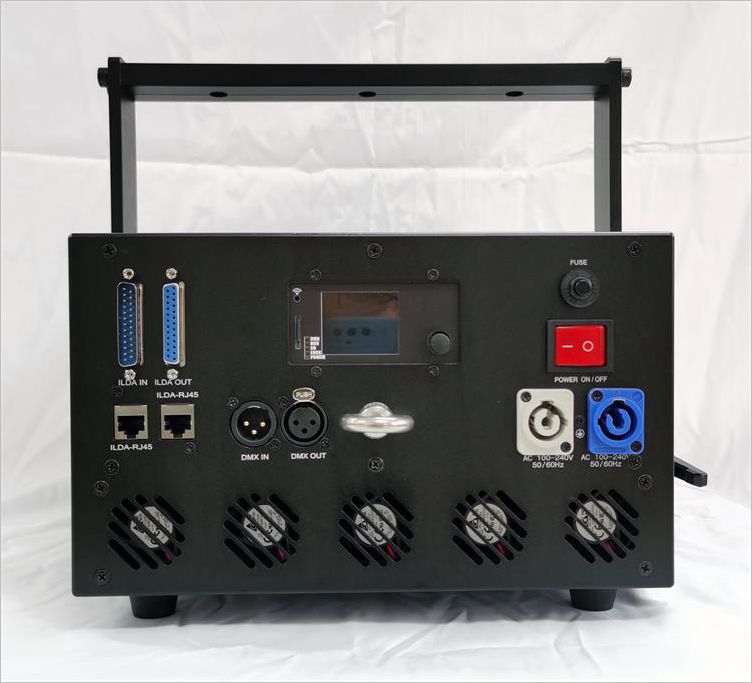

Control :

FB4 (optional), Network in/out, ILDA in/out, DMX in/out, Interlock in/out

Power supply:

AC90-250V, 50/60Hz

Power Cons. :

500W

Cooling :

TEC + Heatsink + Fans

IP grade :

IP54 dust-free

Working Tmp:

-20°C ~ 45°C

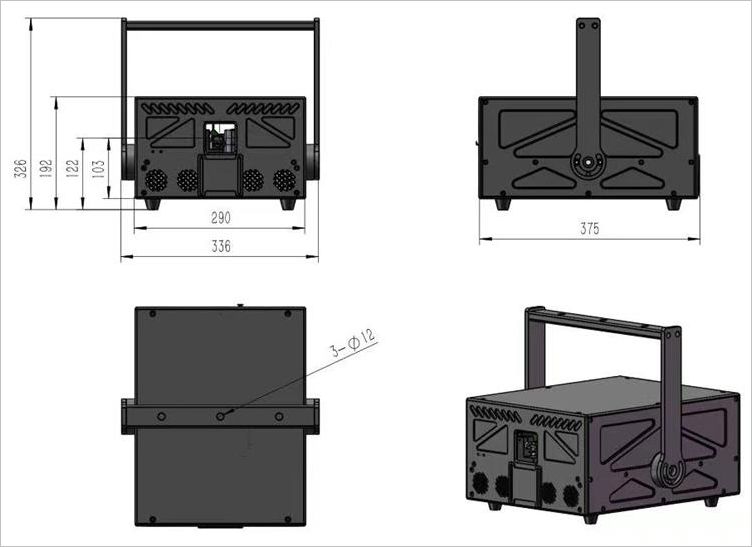

Dimension :

336 x 375 x 192 mm
(without hanging bracket)

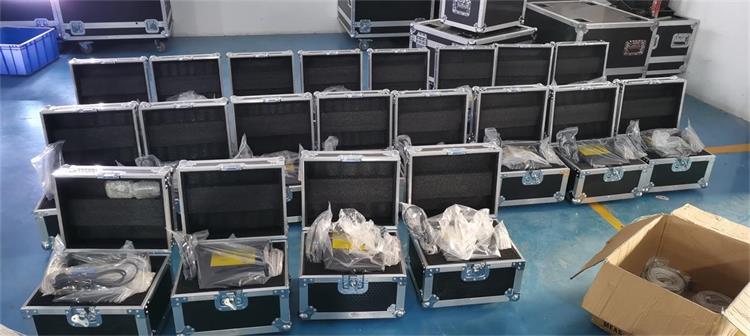

Packing :

Carton 48x43x30cm
Flight case 55x47x42cm

Net weight :

16.5kg

Gross weight :

19kg/carton, 31kg/flight case

.................................................................................



To download

User Manual & DMX512 Library: SERVICE
